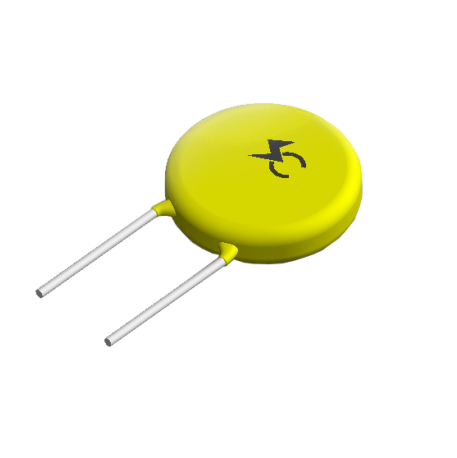

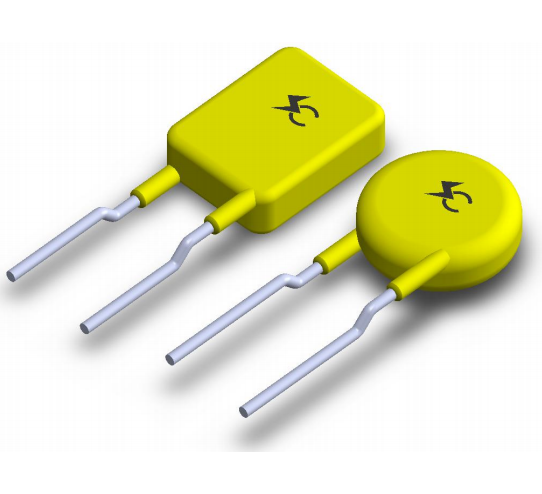

  5. SC250 Series
Product Name Ihold
(A)		 Itrip
(A)		 Vmax
(Vdc)		 Imax
(A)		 Pdtyp.
(W)		 Maximum Time To Trip
Current (A)		 Maximum Time To Trip
Time (Sec.)		 Rmin
(Ω)		 Rmax
(Ω)		 R1max
(Ω)		 Data Sheet
SC250-020CW0D 0.02 0.04 220 3.0 2.0 0.10 10.0 80.0 180.0 280.0
SC250-030CW0D 0.03 0.06 220 3.0 1.3 0.15 10.0 40.0 90.0 140.0
SC250-050CW0D 0.05 0.10 220 3.0 1.0 0.25 8.0 24.0 55.0 86.0
SC250-060CW0D 0.06 0.12 220 3.0 1.0 0.30 10.0 22.0 32.0 51.0
SC250-080CW0D 0.08 0.16 220 3.0 1.0 0.40 3.0 14.0 22.0 25.0
SC250-080CW1A 0.08 0.16 250 3.0 0.8 0.35 4.0 20.0 35.0 280.0
SC250-080CW1A 0.08 0.16 250 3.0 0.8 0.35 4.0 20.0 35.0 280.0
SC250-110SW0D 0.11 0.22 250 3.0 1.0 0.55 0.75 7 11 17
SC250-120SW0A 0.12 0.24 250 1.2 1.0 0.36 15.00 6.0 12.0 16.0
SC250-120SW0B 0.12 0.24 250 3 1.0 1.0 2.0 6 11 16
SC250-120SW0D 0.12 0.24 220 3.0 1.0 0.60 12.5 8.0 12.0 19.0
SC250-120SW5D 0.12 0.24 220 3.0 1.0 0.60 8.5 6.0 10.0 15.0
SC250-145SW0D 0.145 0.29 220 3.0 1.0 0.725 2.5 3.5 6.0 10.0
SC250-160CW0D 0.16 0.32 220 3.0 1.5 0.80 10.0 3.5 7.8 12.0
SC250-180CW0A 0.18 0.65 250 10 1.5 3.0 0.5 1.6 3.2 4.0
SC250-180CW0D 0.18 0.50 220 3.0 1.5 0.90 15.0 1.6 3.2 5.0
SC250-200CW0D 0.20 0.40 220 3.0 2.0 1.0 15.0 3.0 6.5 9.8
SC250-250SZ0B 0.25 0.50 250 3 1.0 3 6 1.5 5 8
SC250-400SZ0D 0.40 0.80 220 3.0 3.5 2.0 20.0 1.20 1.90 2.90
SC250-600CZ0D 0.60 1.20 220 3.0 4.0 3.0 10.0 0.50 0.75 1.13
SC250-600SZ0D 0.60 1.20 250 3.0 4.5 3.0 15.0 0.80 1.40 2.50
SC250-900SZ0D 0.90 1.80 220 3.0 5.5 4.5 20.0 0.50 0.80 1.20
SC250-1000CZ0D 1.00 2.00 220 10 4.0 5.0 10.0 0.28 0.45 0.70
SC250-2000SZ0D 2.00 4.00 220 5.0 5.0 10 15.0 0.135 0.27 0.45
SC250-020CW0D 0.02 0.04 220 3.0 2.0 0.10 10.0 80.0 180.0 280.0
